B&L 1X OBJECTIVE FROM ZOOM 500 MICROSCOPE
(select
photo for larger views) |
|
|
Item No: T1618
Price: $79.00
|
| |
| |
|

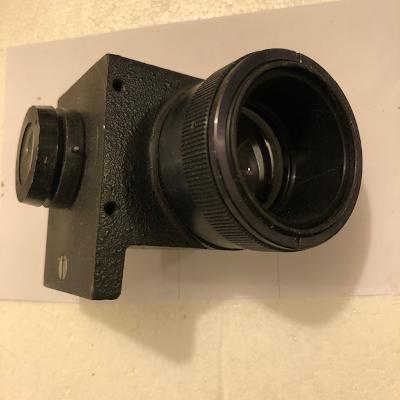

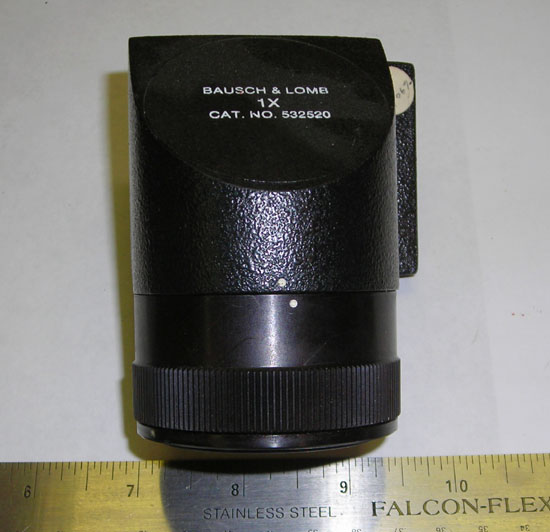

| This was pulled off of the Cambridge Instrumental/B&L Zoom 500 Trinocular Microscope with Light Table. This is the 1x Bausch & Lomb objective that fits this microscope. Beautiful wide angle achromatic coated optics. Front lens clear diameter is 42mm and the rear lens clear diameter is 21mm. The front lens has a pinkish/purple anti-reflective coating and the rear lens has a blue anti-reflective coating. The front lens has a fine tuning focusing mechanism. The rear lens housing which goes into the microscope body is 32.5mm in diameter with two pins sticking out the sides for clasping in place. The base is 74mm long by 56mm wide. The whole assembly is 92mm long by 74mm wide. |
| |
